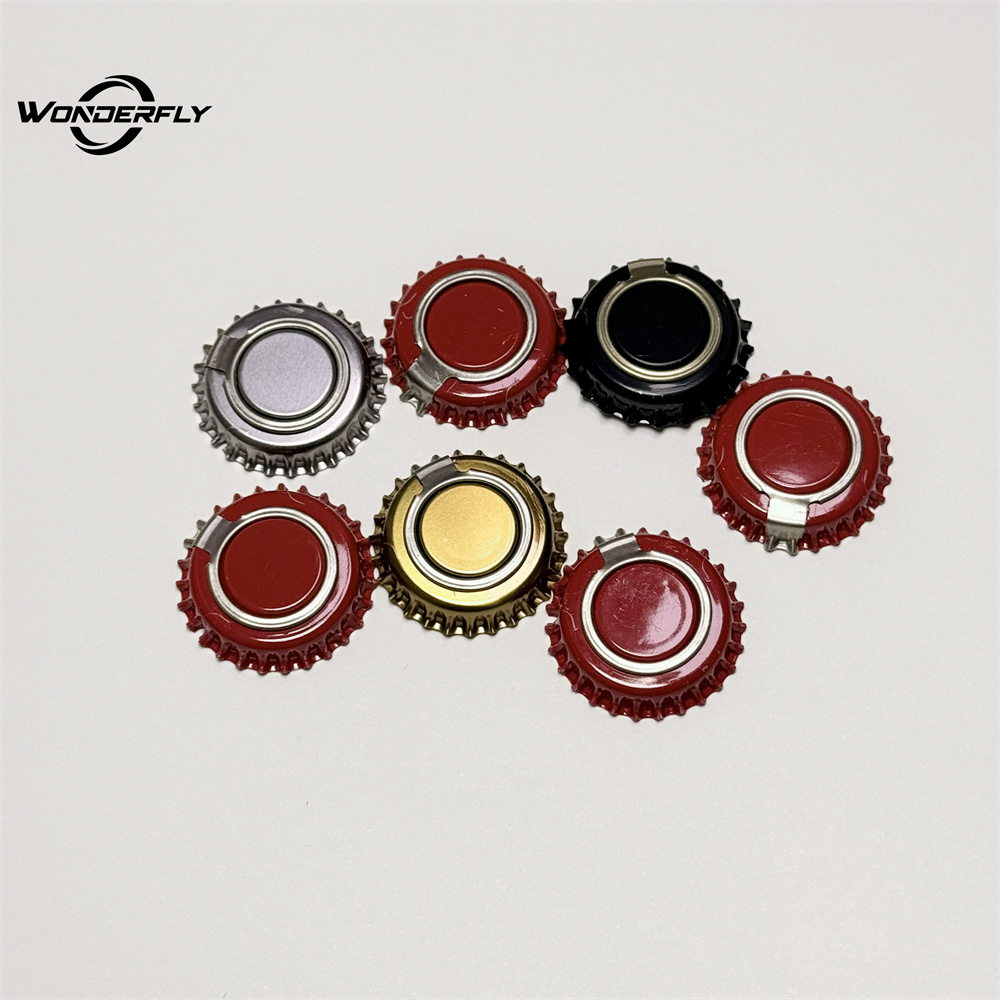

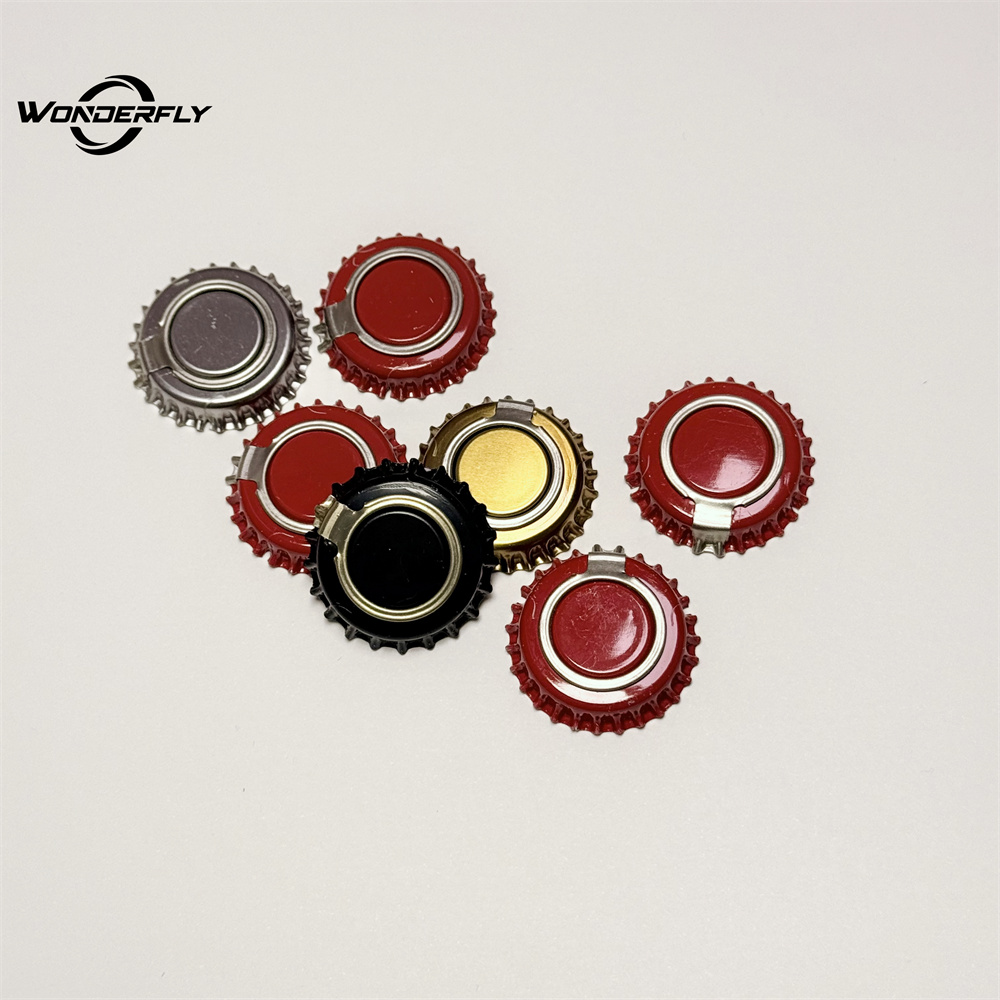

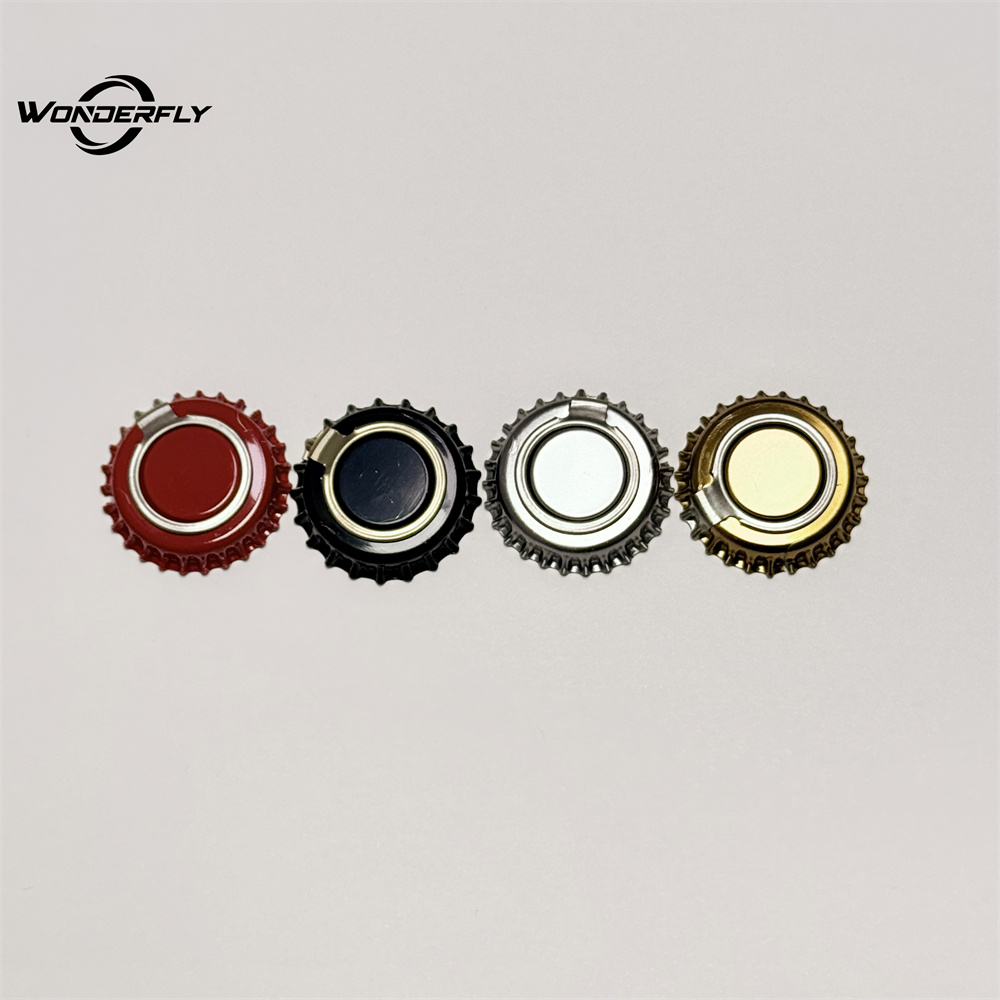

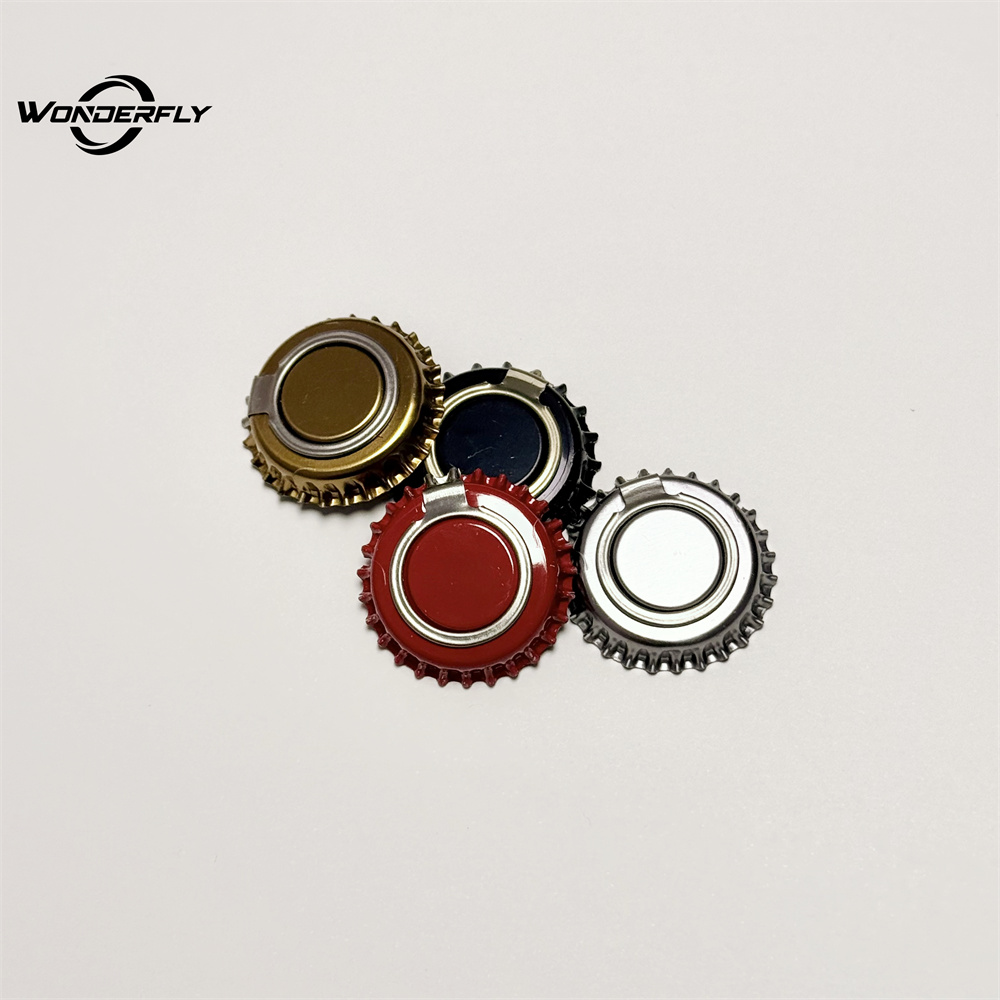

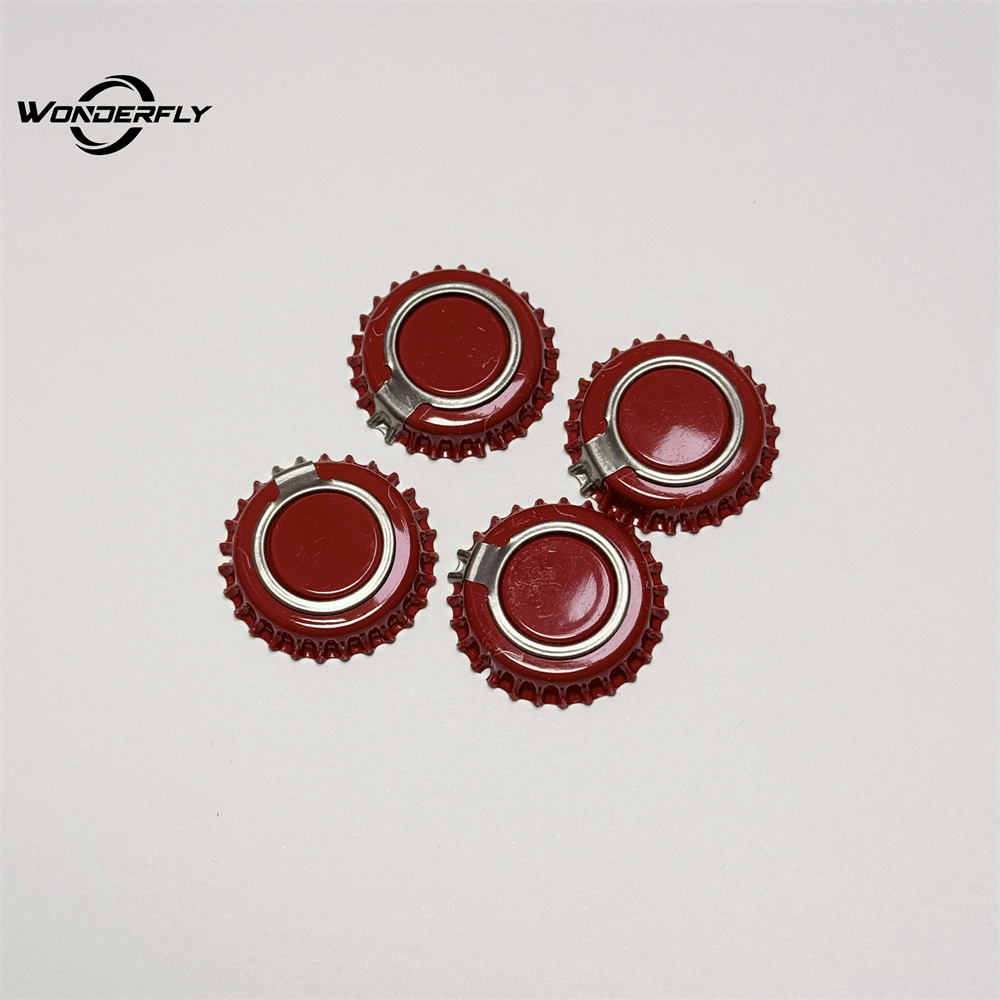

Ring pull cap tinplate beer bottle cap and crown top ring pull off
The crown shaped beer cap is made of food grade tinplate as the base material and stamped into shape. The top is integrated with an integrated tinplate pull ring and prefabricated engraved line, without the need for a bottle opener. Simply pull the ring upwards with your fingers to fully open the cap along the engraved line. The product retains the core advantages of pressure resistance, sealing, and adaptability to high-speed filling of tinplate crown caps, while solving the pain point of traditional bottle caps that must be opened with tools. It also has the characteristics of irreversible anti-counterfeiting and anti-theft, convenient opening, and high shelf recognition. It is the mainstream solution for upgrading packaging of beer, sparkling wine, and carbonated drinks.
| Name of the product | crown cap | Number of Flutes | 21 | |
| Liner | PE | Pieces per Carton | 10000 | |
| Material | Tinplate and ferrochrome plated | Carton Weight (KG) | 25 | |
| Inner Dia(min.) (mm) | 26.75±0.03 | Carton Dimension | 55*35*30cm | |
| Cap Height (mm) | 6.00±0.07 | Type of printing | Customize colors | |
| Out Dia.(mm) | 32.10±0.20 | Packaging | White poly bag , then packed in carton . | |
| Usage | Bottles.beer,Water.Juice,soft drink | Feature | Non Spill | |
| Customized Order | Accept | Place of Origin: | Shandong,China | |
| Brand Name | Wonderfly | Model Number | WDF-02 | |
| Color | Customized | Size | 26mm | |
| Application | Bottle usage | MOQ | Pure color:100,000pcsCustom logo: 300,000pcs | |
| Logo | Custom logo | Sample | provided | |
| Packaging&delivery | Packaging Detail.10,000 pcs /carton . First , white poly bag ,then packed in carton . | |||
| Port | Qingdao,Tianjin | |||
Tool free activation, experience upgrade
The traditional crown cap must be paired with a bottle opener, and the top pull ring style can be fully opened with just a finger lift. Outdoor, dining, and gathering scenes do not require additional tools, and both the elderly and women can easily operate it, greatly improving the consumer experience.
Irreversible anti-counterfeiting, anti-theft and tamper proof
After the pull ring is unsealed, the engraved line is completely broken, and the bottle cap cannot be restored. Consumers can intuitively judge whether the product has been unsealed, effectively preventing secondary filling and counterfeit goods. The anti-counterfeiting effect is far better than ordinary pry caps.
The sealing and pressure resistance performance is on par with traditional crown covers
Retaining the 21 tooth crown shaped sealing structure, the pressure resistance, temperature resistance, and leak proof performance are consistent with traditional tinplate caps, fully meeting the filling and storage requirements of beer and carbonated carbonated beverages.
Zero transformation adaptation of production line
The standard 26.5mm crown size and 21 tooth structure are fully compatible with the original beer filling and capping equipment, without the need to replace molds or adjust production line parameters. They can directly replace traditional crown caps without affecting production efficiency.
Resistant to sterilization and storage and transportation
It can be pasteurized at temperatures below 121 ℃, resistant to drops and vibrations, and has no leakage or bulging problems during long-distance land and sea transportation. It is suitable for nationwide distribution and export sea transportation.
High recognition of appearance enhances brand value
The unique shape of the top pull ring distinguishes it from ordinary flat covers on shelves, with strong visual impact; The cover can be customized with brand printing to strengthen brand memory points and help product premiums.
This product is an integrated metal easy to open structure, divided into six core parts from the outside to the inside:
Makou Iron Crown Cover Body
Food grade tin plated tinplate integrated stamping forming, standard 21 tooth crown structure, is the strength support and sealing foundation of bottle caps; The cover is flat and supports multi-color printing, hot stamping and other appearance processes, with a strong metallic texture.
Top prefabricated circular engraved line
The precise pressing of continuous depth controllable circular engraved lines on the inner side of the cover is the core process to ensure smooth opening and no debris. When lifting the pull ring, the cover body breaks regularly along the engraved line, and the opening path is stable without producing fine iron shavings.
Top mounted tinplate pull ring
Made of the same material as the lid, it is stamped and fixed to the lid with solid rivets. It is designed with a retention plate - the pull ring is always connected to the lid after opening, and will not fall off into the bottle, avoiding contamination of the beverage and making it safer to use. The pull ring is attached to the cover, and it can be stacked and transported without scratching or jamming.
Food grade internal protective coating
The inner side of the cover is uniformly coated with food grade epoxy phenolic coating, completely isolating direct contact between the tinplate metal and the wine body, preventing the precipitation of tin, iron ions, and heavy metals, and meeting domestic and international food contact safety standards.
High elasticity sealing gasket
Embedded inside the lid, it adopts a dual sealing structure of top seal and side seal. After capping, it tightly adheres to the end face and side wall of the bottle mouth, achieving the functions of air locking, leakage prevention, and pressure maintenance; Different functional gaskets can be selected according to the usage scenario.
21 tooth curled edge sealing structure
Standard crown shaped curled edge teeth, bite the protruding ring at the bottle mouth after capping, forming a physical seal lock, and cooperate with gaskets to achieve dual leak prevention. It can withstand the internal pressure of carbonated drinks and transport without falling off the lid or leaking liquid.
Packaging & Shipping
Can the 1.26mm tinplate top pull ring cover directly replace the ordinary tinplate beer crown cover?
Absolutely possible. This product has a standard 26.5mm, 21 tooth crown structure, and the bottle mouth size and capping mold are completely compatible with traditional pry crown caps. There is no need to replace equipment or adjust the production line, and it can be replaced directly.
Will the pull tab fall into the wine after opening? Are there any safety hazards?
can't. This product adopts a retained piece riveting design, and the pull ring is fixed to the lid body by rivets. After opening, it is always connected to the lid body and will not fall off into the bottle; At the same time, the engraving process is mature, and there are no fine iron filings after opening, making it safe and reliable to drink.
Is this lid suitable for craft beer?
Very suitable. Paired with oxygen absorbing and fresh-keeping pads, it can absorb residual oxygen in the bottle. Combined with the sealing performance of tinplate, it effectively delays beer oxidation, maximizes the preservation of the flavor and taste of fresh beer, and extends the shelf life by 3-6 months compared to ordinary tinplate lids.
Can we customize logos and colors? What is the minimum order quantity?
Support full-color printing, hot stamping, and spot color spraying for full customization. Blank spot goods have no minimum order quantity limit and can be shipped in small quantities; The regular minimum order quantity for customized printing is 50000 to 100000 pieces, and a small plate making fee can be charged for small batch orders.
What is the difference between top pull tab and side pull tab beer lids?
The core difference lies in the opening method and structure:
Top pull ring: The pull ring is located in the center of the cover and can be pulled upwards to open it. The opening force is vertical and easy to apply. The all metal structure has a strong texture;
Side pull ring: The pull ring is located on the side of the bottle cap and can be torn apart laterally. After opening the cap, the entire bottle cap can be removed, and some styles are made of aluminum-plastic composite structure.
You can choose based on brand positioning and target audience usage habits.
Can free sample testing be provided?
Samples can be provided for free, and customers only need to bear the shipping cost. The samples can be used for capping adaptation, opening feel, sealing effect, and printing sample testing.
How long is the delivery cycle approximately?
Blank spot payment will be shipped within 3-7 days; Customized printing/color matching products will be delivered within 10-15 days after the design draft is confirmed.
