Cart(The crown cap is a versatile product that can be used for beverages such as beer, juice, sparkling water, etc.

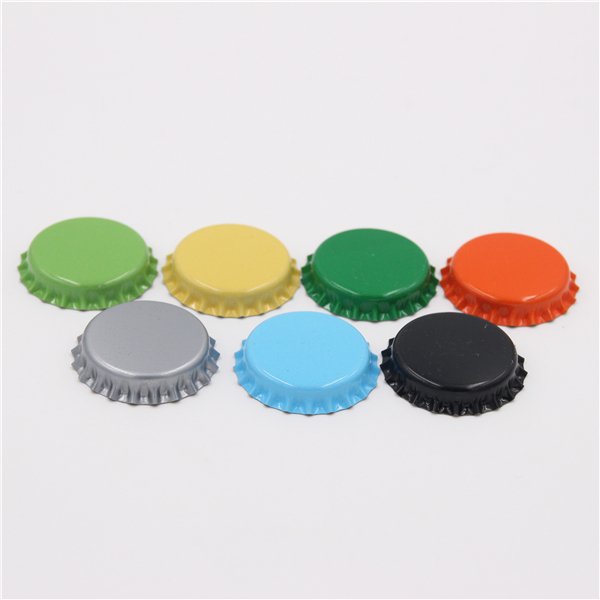

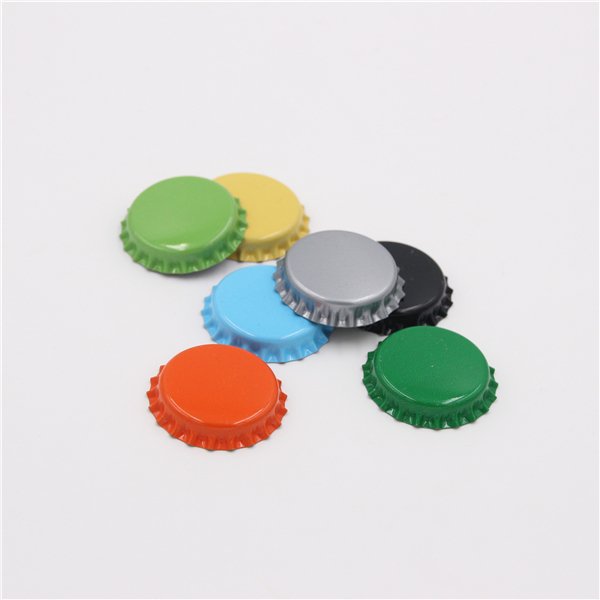

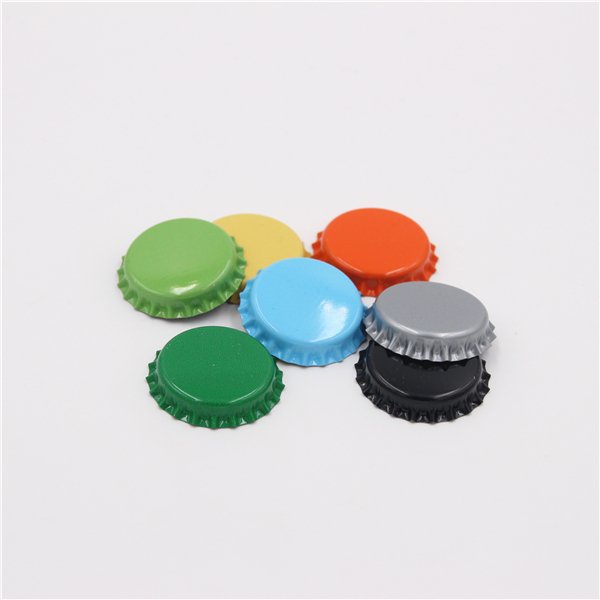

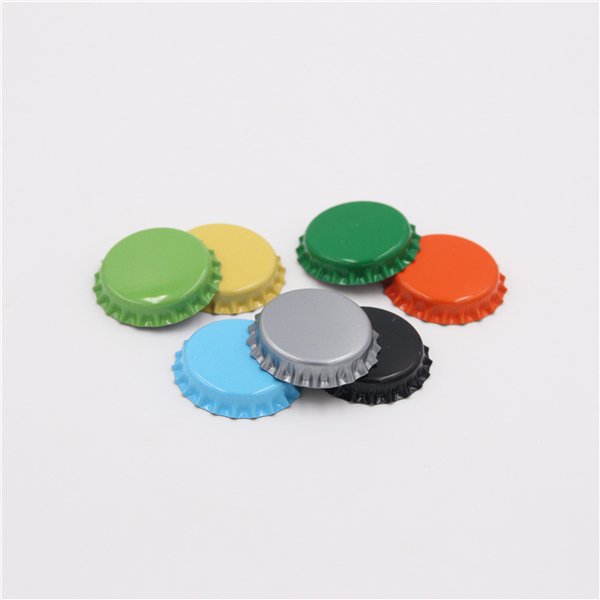

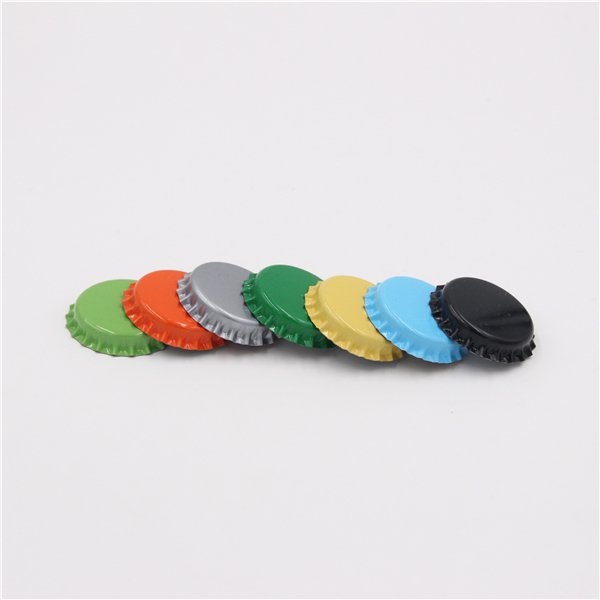

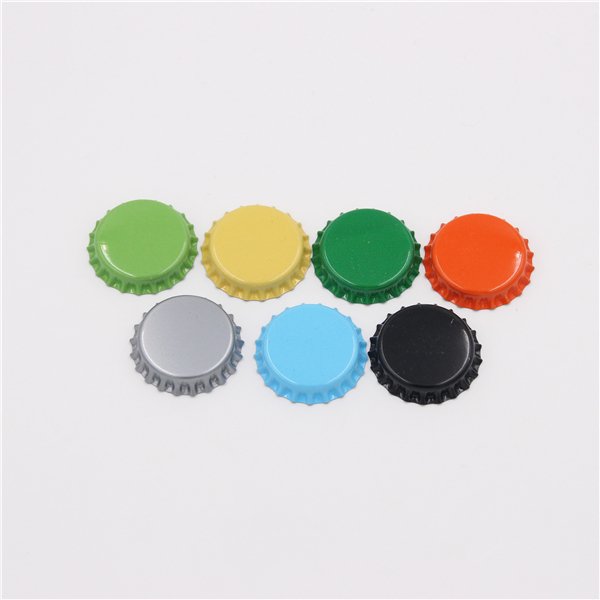

Pure color beer crown cap 26mm
Product Name:Pure color beer crown cap 26mm
The crown cap is a versatile product that can be used for beverages such as beer, juice, sparkling water, etc. Belongs to standard size, the pattern is beautifully printed, and can be customized as required. Product quality first, short delivery time.
Pure color beer crown cap.
Material Analysis
Materials for bottle cap production: iron plates, various coating materials, printing inks, liner materials, etc. are processed and combined.
Iron: is the main material of the cap shell
Coating: It protects metal materials from scratches and corrosion
Printing ink: it is the carrier for presenting text, patterns, categories and publicity activities
Liner material: is the sealing material of the bottle cap
[Background technique]
Due to having good sealing performance, crown cap can keep pressure and quality and taste unchanged for a long time,so it is widely used in industries such as beer and carbonated beverages packed in glass bottles, and wherein beer industry is the main. The crown cover is a stamped tinplate, generally made of T4 material with a thickness of 0.22~0.24mm and a hardness of HR30Tm of 61 ± 3. There are two types of surface plating: tin plating (SPTE) and chrome plating (TFS). With the development of the food packaging industry, it is proposed to reduce the thickness of the crown cover, increase the strength, and use low-cost chrome plating (TFS) instead of tin plating.
Metal printing is rarely the printing of final products, but is often an integral part of the processing process of various containers, covers, building materials, household electrical appliances, furniture, nameplates and various miscellaneous supplies. life is the main purpose. Therefore, in order to arouse consumers' desire to buy and improve the sales value of commodities, as a means of promotion, novel binding designs and exquisite printing should be carried out. In this way, metal printing becomes more important.
| Name of the product | crown cap | Number of Flutes | 21 | |
| Liner | PE | Pieces per Carton | 10000 | |
| Material | Tinplate and ferrochrome plated | Carton Weight (KG) | 25 | |
| Inner Dia(min.) (mm) | 26.75±0.03 | Carton Dimension | 55*35*30cm | |
| Cap Height (mm) | 6.00±0.07 | Type of printing | Customize colors | |
| Out Dia.(mm) | 32.10±0.20 | Packaging | White poly bag , then packed in carton . | |
| Usage | Bottles.beer,Water.Juice,soft drink | Feature | Non Spill | |
| Cutomized Order | Accept | Place of Origin: | Shandong,China | |
| Brand Name | Wonderfly | Model Number | WDF-02 | |
| Color | Customized | Size | 26mm | |
| Application | Bottle usage | MOQ | Pure color:100,000pcsCustom logo: 300,000pcs | |
| Logo | Custom logo | Sample | provided | |
| Packaging&delivery | Packaging Detail.10,000 pcs /carton . First , white poly bag ,then packed in carton . | |||
| Port | Qingdao,Tianjin | |||
Mostly used for large capacity glass bottles, fruit wine, and carbonated beverages, with a 21 tooth structure and the same substrate thickness as the standard version.
Optional styles: ① Pry off pry open lid (standard, requires bottle opener); ② Twist off lid (improved version, manually rotated to open, mostly used for high-end craft brewing)
| Quantity(pieces) | 1 - 100000 | >100000 |
| Est. time (days) | 7 | To be negotiated |
②Crown cap pe liner granules, consistent particles, uniform plasticization, good melt fluidity, can form a smooth and flat surface of the bottle gasket after extrusion molding and hot pressing, with good elasticity, good sealing performance, and excellent sealing performance.
③ Good hygiene index, in line with European and American requirements for hygiene performance of food packaging materials, suitable for inner pads of bottle caps such as beer and beverages.
The production process and quality of the crown cap:
Bottle caps: Bottle caps are bottle caps with sizes, materials of various sizes, bulking, and liner processing to form a bottle cap with a certain outer diameter, height, and skirt teeth.
Bottle caps are bottle caps with sizes, materials of various sizes, bulking, and liner processing to form a bottle cap with a certain outer diameter, height, and skirt teeth.
10+ yearsprofessional crown cap manufacturer ----- Stable quality, defect rate < 0.3% ----- Large production capacity, fast delivery ----- Flexible MOQ: small order & bulk order both supported -----Export experience to 60+ countries
Full after-sales support & technical guidance
The beer lid consists of three parts: an outer printed iron sheet, a middle protective coating, and an inner sealing gasket, all of which meet food contact safety standards.
Cover metal substrate (3 optional raw materials)
ETP tinplate (mainstream preferred):Tin plating amount ≥ 5.6g/㎡, excellent rust prevention performance, smooth surface, uniform printing and coloring, suitable for mid to high end brand beer and exported alcoholic beverages.
TFS chrome plated iron (economical type): no tin coating, lower production cost, acid and alkali resistance, high cost-effectiveness for dark pattern printing, commonly used in affordable beer and soda for the public.
Food grade aluminum alloy (high-end customization): light and thin texture, good toughness, lightweight and easy to open bottle, mostly used for craft beer and imported drinks, priced higher than tinplate.
Inner layer sealing gasket (3 types of gasket classification, core sealing component)
The rubber pad is the key to preventing bottle cap leakage and preventing alcohol leakage. It comes into direct contact with the alcohol body and is divided into three categories:
PVC plastic sol gasket (universal economical type): stable sealing, low cost, suitable for normal temperature beer and soda, standard for domestic popular alcoholic beverages; Water pressure resistance ≥ 0.8MPa.
Non PVC environmentally friendly rubber gasket (export specific): compliant with EU LFGB and US FDA, free of ortho benzene, exclusively for exporting alcoholic beverages from Europe, America, Japan, and South Korea, environmentally friendly and free of precipitation.
Oxygen absorption and deoxygenation pad (for preservation purposes): The rubber pad contains oxygen absorption components, which adsorb residual oxygen in the bottle, delay beer oxidation and deterioration, and extend the shelf life of beer by 3-6 months. It is preferred for craft beer and mature beer.
Surface coating
Outer layer of cover: printed ink+glossy varnish, wear-resistant and scratch resistant;
Inner layer of cover: food grade protective coating, isolating direct contact between metal and alcohol, and preventing metal ion precipitation from contaminating the beverage.
Raw materials entering the factory → Iron sheet cutting → Surface pretreatment → High speed precision stamping forming (21 tooth integrated stamping) → Inner coating baking and curing → Fully automatic injection of rubber pad → High temperature vulcanization and shaping of rubber pad → Four color printing/spot color printing on the outer surface → Surface gloss varnish → Constant temperature drying → Full inspection and sorting → Packaging and storage
Printing process options: CMYK four-color offset printing, spot color Pantone printing, hot stamping/silver stamping, UV matte, laser anti-counterfeiting, QR code printing;
Production equipment: Fully automatic high-speed stamping production line, with a daily production capacity of up to 3 million bottle caps per line, suitable for large-scale orders.
Standard diameter is 26.5mm (fits 99% beer bottles), 29mm large size is also available.
Pry-off needs a bottle opener; Twist-off can be opened by hand twisting. Twist-off is more expensive and for high-end products.
We provide PVC, Non-PVC, and Oxygen Scavenging liner.Oxygen Scavenging Liner is the best for beer, which can extend shelf life greatly.
Yes, we support full custom printing. MOQ for printed cap is 50,000–100,000pcs (depends on design). Blank cap: low MOQ, ready stock.
All materials are food-grade. We can provide FDA, LFGB, SGS certificates to meet global market requirements.
Fits all standard automatic & semi-automatic beer bottle capping machines (Chinese & imported machines all work).
Blank cap: 3–7 days; Printed cap: 10–15 days after sample confirmed.
Free samples available, buyers only need to bear the shipping cost.
Store in dry & ventilated environment, avoid dampness (prevent rust) & direct high temperature (prevent liner aging).
The crown cap is a versatile product that can be used for beverages such as beer, juice, sparkling water, etc.
The beer crown cap is a 21-tooth metal sealing cap specially designed for glass bottles of beer and carbonated drinks. It adopts food-grade metal material + high-elastic sealing liner, with strong pressure resistance, excellent sealing performance, and supports high-temperature pasteurization. Widely used in industrial beer factories, craft breweries, beverage factories, and export markets worldwide.
Cover surface: full molding, complete structure, no material shortage, no obvious damage, burrs and deformation;
Bottle cap surface smooth, clean appearance, bright color, not easy to fade, good texture, color and pattern can be customized.
